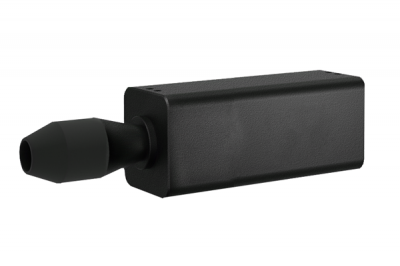

Virtual Display Optical Analyzer

There are Luminance, Color and Spectrum designs, and multi-angle lens options.

Contact

Characteristic
Application
Specification

Virtual Display Optical Analyzer Characteristic

•There are Luminance, Color and Spectrum designs, and multi-angle lens options.

•Equipped with a detector with a variety of resolutions and a front-facing diaphragm lens with a wide fieldThe ARVR measurement software module provides users with the most productive software environment. Whether simple or in-depth analysis, all results and analysis functions of the software can be efficiently automated.

• Provides an excellent solution for luminance and chrominance testing.

•Reliable analysis can be performed even at weak signals as low as 0.001cd/m2 luminance.

•The front diaphragm lens is designed to simulate the eye pupil size of 3.6mm~8mm.

•High dynamic range exposure and ND filters enable a wide measurement range and up to 1000000:1 contrast.

•Optical analysis such as luminance, chromiance, contrast, MTF, FOV, image distortion, image retention, ghosting, etc. Support a variety of customized test function modules.

Virtual Display Optical Analyzer Application

•Various near-eye displays (NED)

•Head-mounted Augmented Reality (AR)

•Virtual Reality (VR)

•Mixed Reality (MR)

Virtual Display Optical Analyzer Specification

Model	V-20M/S/F	V-26M/S/F		V-46M/S/F	V-61M/S/F	V-150M/S/F
Total Pixel (million)	20	26		46	61	150
Measurement Function	Luminance / CIE chromaticity coordinates, CCT, Dominant wavelength, Tristimulus value
Luminance	Measurement Range		0.001/0.0001 to 100,000cd/m2(Using ND can be higher)
	Accuracy*¹		±3%
	Repeatability(δ)*¹		±0.5%
Lens	A-50（50 degrees diagonal）\| A-70（70 degrees diagonal） A-100（100 degrees diagonal）\| A-120（120 degrees diagonal）
