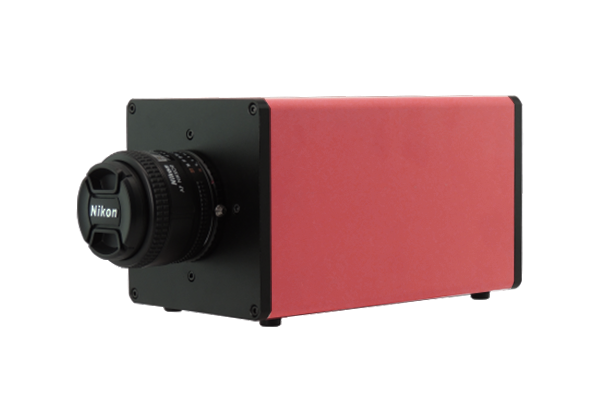

L-Series Imaging Photometer

L-Series Imaging Photometer

L-Series Imaging Photometer is equipped with CMOS detector, cooperated with ProICM professional analysis software to detect the luminance parameters of the two-dimensional imaging screen. Professionally complete the data analysis of the measured parameters to help the tester improve the luminance quality of the finished product and ensure the comfortable use experience of end users.

L-Series Imaging Photometer Characteristic

  • Equipped with CMOS detector and 2 million pixel to 61 million pixel resolution detector, fully meeting the measurement needs of different precision.
  • L-Series is equipped with a Y filter that approximates human eye visual function.
  • Professionally used for FPD photometry, lighting product luminance testing, indoor, road and tunnel glare analysis, etc.
  • The high dynamic range exposure and ND filter can meet the wide measurement range, achieving up to 1000,000:1 contrast test.
  • Equipped with DDR buffer memory and bandwidth modulation to realize data reading in low-configuration operating environments.
  • Among them, L-10 L-24 L-61 adopts backlit sensor, which has ultra-high resolution of full frame and readout noise as low as one electron.
  • The ProICM professional analysis software developed with dedication provides testers with the best software environment. It can automatic output test results to meet the needs of various in-depth analyses.
  • Support readout and synthesis of ROI.

L-Series Imaging Photometer Application

  • Display products
  • Backlight characters
  • Backlit keyboard
  • Dashboards for aviation/vehicle
  • Vehicle atmosphere lights
  • LED Lighting Products

L-Series Imaging Photometer Specification

Model

L-2

L-10

L-16

L-24

L-61

Total Pixel (million)

2.30

11.67

16.21

26.02

60.92

Effective Pixels

1900*1200

4140*2820

4634*3500

6242*4170

9560*6372



Cooled System

Two stage TEC.(Typical -45 below Ambient)

Dynamic Range

>1000000:1(Multiple exposure)

Pixel Depth

16bits

Exposure Time

16uSec to 60Sec

MeasurementFunction

Luminance

Luminance

Measurement range

0.0001 to 100,000cd/m^2

Accuracy*¹

±3%

Repeatability(δ)*¹

±0.5%

Lens

24mm、28mm、35mm、50mm、100mm F interface Lens

Dimension

100*100*150mm(L*W*H)

Interface

LAN

Operation Temperature

5 to 50°C

Input Voltage

AC Adapter

Lens

Distance

L-2

L-10

L-16

L-24

L-61

24mm

300mm

141*88

241*162

221*167

294*196

448*305

500mm

234*146

402*270

369*279

490*327

746*508

1000mm

469*292

803*540

737*558

979*654

1492*1017

1500mm

703*438

1205*809

1106*836

1469*981

2238*1525

2000mm

938*583

1607*1079

1474*1115

1958*1308

2984*2033

28mm

300mm

121*75

207*139

190*143

252*168

384*258

500mm

201*125

344*231

316*239

420*280

639*430

1000mm

402*250

689*463

632*478

839*561

1279*861

1500mm

603*375

1033*694

948*717

1259*841

1918*1291

2000mm

804*500

1377*924

1264*956

1679*1121

2558*1721

35mm

300mm

96*60

165*111

152*115

201*135

307*207

500mm

161*100

275*185

253*191

336*224

512*344

1000mm

321*200

551*370

505*382

671*449

1023*689

1500mm

482*300

826*555

758*573

1007*673

1535*1033

2000mm

643*400

1102*740

1101*765

1343*897

2046*1377

50mm

300mm

68*42

116*78

106*80

141*94

215*145

500mm

113*70

193*130

177*134

235*157

358*241

1000mm

225*140

386*259

354*268

470*314

716*482

1500mm

338*210

578*389

531*401

705*471

1074*723

2000mm

450*280

771*518

708*535

940*628

1432*964

*Measurement of luminance and chrominance measurement is based on the RayClouds conditions (using 1000cd/m^2 standard light source, LED backlight, 6500K LCD display).

*Specifications and appearance are subject to change without prior notice.

L-Series Imaging Photometer Ordering Details

Name

Category

Number

Lens

24mm

28mm

35mm

50mm

100mm

L-LEN-24

L-LEN-28

L-LEN-35

L-LEN-50

L-LEN-100

LAN-Cable

3m

5m

10m

L-LAN-03

L-LAN-05

L-LAN-10

AC Adapter

5V-3A

L-PW-0503

PROICM Software

V1.0

PROICM-V1.0

Software Manual

PROICM

L-SM-V1

Key

USB

L-KEY-19

Calibration Certificate

Standard Light Source A

LED Light Source

Standard LCD at 6500K

L-CAL-A

L-CAL-LED

L-CAL-LCD

ND Filters(Optional)

10 times

100 times

L-ND-10

L-ND-100

Tripod(Optional)

TRIOPO

L-TR-258

Instrument suitcase(Optional)

L*W*H (390*285*120mm)

L-PK-065

*Note: Please order the appropriate product specifications according to your needs.
