C-Series Imaging Colorimeter

C-Series Imaging Colorimeter

C-Series Imaging Colorimeter is equipped with a scientific-grade large surface array CMOS sensor, cooperated with ProICM professional analysis software to detect various optical parameters of the two-dimensional imaging screen. Efficiently complete the data analysis of the measured parameters and optimize the product imaging quality, which is beneficial to improve the yield of finished products.

C-Series Imaging Colorimeter Characteristic

  • A scientific large array CMOS sensor is adopted. Each series of imaging colorimeters can be equipped with 2 million pixels to 61 million pixels resolution detectors, which is fully meet the needs of different precision measurement.

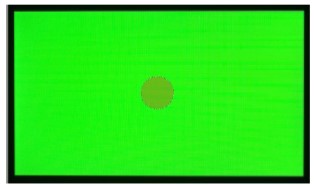

  • Pixel-level measurement for FPD; Measurement of internal luminance difference for backlight module, keyboard character backlight and vehicle dashboard; High precision measurement of luminance and chrominance of lighting fixtures with LED arrays and LED for lighting environments; Accurate measurement and analysis of luminance and chrominance distribution, bright spot and dark spot, light leakage,uniformity of smart phones, tablets computers and other displays.
  • The high dynamic range exposure and ND filter can meet the wide measurement range, achieving up to 1000,000:1 contrast test.
  • Accurate measurement and analysis can be performed even at weak signals as low as 0.0001cd/m^2 luminance.
  • Equipped with DDR buffer memory and bandwidth modulation to realize data reading in low-configuration operating environments.
  • The use of semiconductor refrigeration technology as low as -45° room temperature to minimize test noise and temperature drift.
  • The ProICM professional analysis software developed with dedication provides testers with the best software environment. It can automatic output test results to meet the needs of various in-depth analyses.
  • Support readout and synthesis of ROI.

C-Series Imaging Colorimeter Application

  • Display products
  • Backlight characters
  • Backlit keyboard
  • Dashboards for aviation/vehicle
  • Projector imaging
  • Vehicle atmosphere lights
  • LED Lighting Products

C-Series Imaging Colorimeter Specification

Model

C-2

C-10

C-16

C-24

C-36

C-61

Total Pixel (million)

2.30

11.67

16.20

26.02

36.17

60.92

Effective Pixels

1900*1200

4140*2820

4940*3280

6242*4170

7338*4930

9560*6372

Cooled System

Two stage TEC.(Typical -45 below Ambient)

Dynamic Range

>1000000:1(Multiple exposure)

Pixel Depth

16bits

Exposure Time

16uSec to 60Sec

Measurement

Function

Luminance,CIE1931 & CIE1976,CCT,Dominant wavelength

Luminance

Measurement range

0.0001 to 100,000cd/m^2

Accuracy*¹

±3%

Repeatability(δ)*¹

±0.5%

Chromaticity

Illuminant A*¹

±0.002

LEDLight Source*¹

±0.002

Standard LCD*¹

±0.002

Other Uncorrected Source*¹

±0.01

Repeatability(δ)*¹

±0.0003

Lens

24mm、28mm、35mm、50mm、100mm Finterface Lens

Dimension

240*150*160mm(L*W*H)

Interface

LAN

Operation

Temperature

5 to 50°C

Input Voltage

ACAdapter

Lens

Distance

C-2

C-10

C-16

C-24

C-36

C-61

24mm

300mm

141*88

241*162

294*196

294*196

448*305

448*305

500mm

234*146

402*270

490*327

490*327

746*508

746*508

1000mm

469*292

803*540

979*654

979*654

1492*1017

1492*1017

1500mm

703*438

1205*809

1469*981

1469*981

2238*1525

2238*1525

2000mm

938*583

1607*1079

1958*1308

1958*1308

2984*2033

2984*2033

28mm

300mm

121*75

207*139

252*168

252*168

384*258

384*258

500mm

201*125

344*231

420*280

420*280

639*430

639*430

1000mm

402*250

689*463

839*561

839*561

1279*861

1279*861

1500mm

603*375

1033*694

1259*841

1259*841

1918*1291

1918*1291

2000mm

804*500

1377*924

1679*1121

1679*1121

2558*1721

2558*1721

35mm

300mm

96*60

165*111

201*135

201*135

307*207

307*207

500mm

161*100

275*185

336*224

336*224

512*344

512*344

1000mm

321*200

551*370

671*449

671*449

1023*689

1023*689

1500mm

482*300

826*555

1007*673

1007*673

1535*1033

1535*1033

2000mm

643*400

1102*740

1343*897

1343*897

2046*1377

2046*1377

50mm

300mm

68*42

116*78

141*94

141*94

215*145

215*145

500mm

113*70

193*130

235*157

235*157

358*241

358*241

1000mm

225*140

386*259

470*314

470*314

716*482

716*482

1500mm

338*210

578*389

705*471

705*471

1074*723

1074*723

2000mm

450*280

771*518

940*628

940*628

1432*964

1432*964

*Measurement of luminance and chrominance measurement is based on RayClouds conditions (using 1000cd/m^2 standard light source, LED backlight, 6500K LCD display).

*Specifications and appearance are subject to change without prior notice.

C-Series Imaging Colorimeter Optional Spectral Module

  • The built-in splitter is used to connect the optional built-in spectral analysis module to provide the luminance meter function with a single point spectral radiation;
  • The accuracy of imaging colorimeter is improved to the level of spectroradiometer by automatic calibration;
  • Spectral analysis data for spectroradiometers are also provided.

Specification of Imaging Colorimeter

Wavelength Rang

350-1100nm

Spectrum Resolution

1nm

Signal to noise ratio

150:1

AD

16bits

Exposure Time

3mSec~24Sec

Measurement Function

Luminance,CIE1931 & CIE1976,CCT,Dominant wavelength
Peak wavelength,Display index

Luminance

Measurement range

0.1 to 100,000cd/m2

Accuracy*¹

±3%

Repeatability(σ)*¹

±0.5%

Chromaticity

Standard Illuminant A

±0.002

Repeatability(σ)*¹

±0.0003

Interface

USB

*Measurement of luminance and chrominance measurement is based on RayClouds conditions (using 1000cd/m2 standard light source, LED backlight, 6500K LCD display).
*Specifications and appearance are subject to change without prior notice.

C-Series Imaging Colorimeter Ordering Details

Name

Category

Number

Lens

24mm

28mm

35mm

50mm

100mm

C-LEN-24

C-LEN-28

C-LEN-35

C-LEN-50

C-LEN-100

LAN-Cable

3m

5m

10m

C-LAN-03

C-LAN-05

C-LAN-10

AC Adapter

12V- 5A

5V-3A

C-PW-1205

C-PW-0503

PROICM Software

V1.0

PROICM-V1.0

Software Manual

PROICM

C-SM-V1

Key

USB

C-KEY

Calibration Certificate

Standard Light Source A

LED Light Source

Standard LCD at 6500K

C-CAL-A

C-CAL-LED

C-CAL-LCD

ND Filters(Optional)

10 times

100 times

C-ND-10

C-ND-100

Tripod(Optional)

TRIOPO

C-TR-258

Instrument suitcase(Optional)

L*W*H (565*415*210mm)

C-PK-139

*Note: Please order the appropriate product specifications according to your needs.
