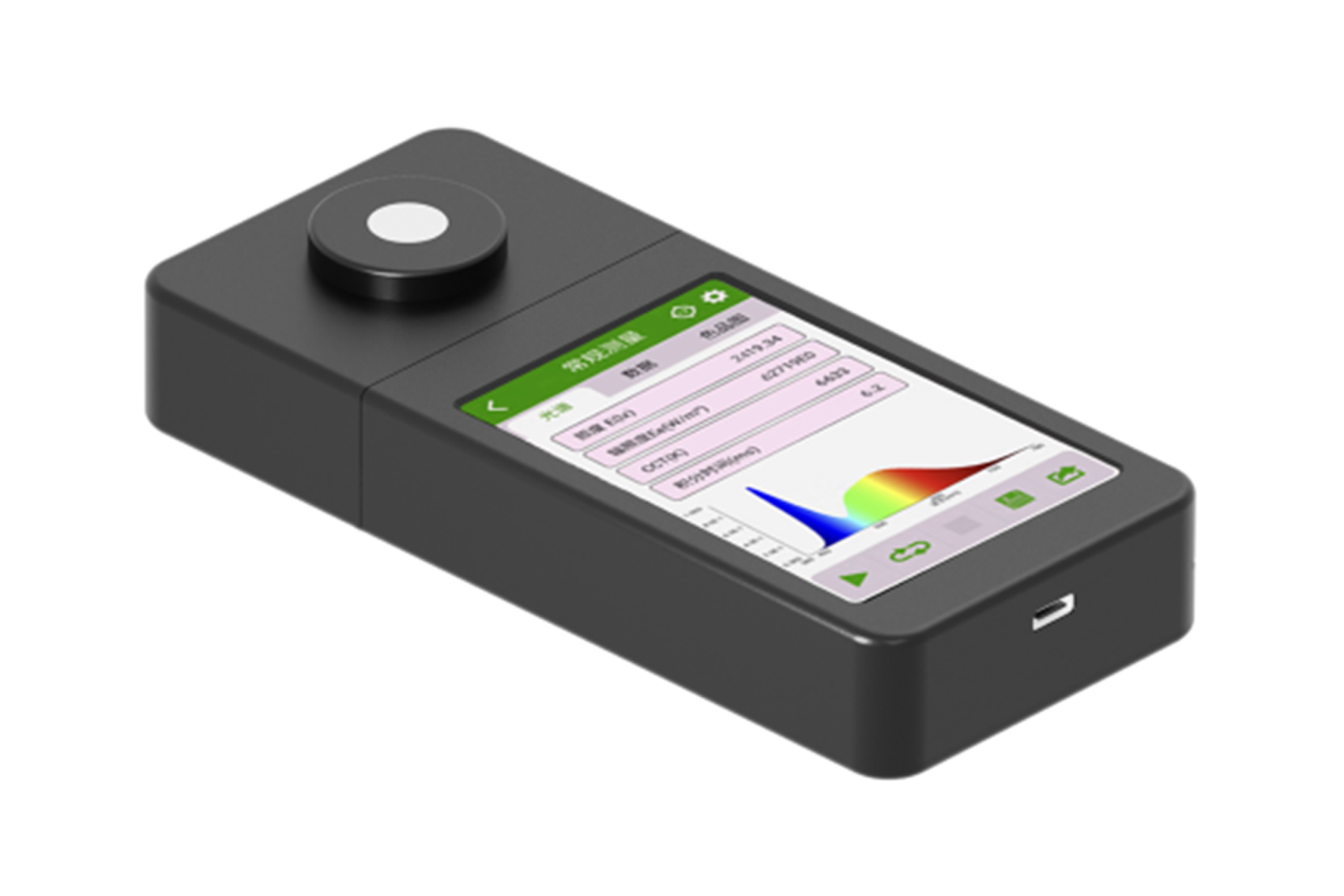

P-30 Spectral Spectroradiometer

P-30 Spectral Spectroradiometer Specification

Model	P-30-UV	P-30	P-30-NIR
Wavelength Range	200-850 nm	380-780 nm	300-1100 nm
Exposure Time	100 μsec ~ 24 sec
Measurement Functions	Irradiance, Illuminance, Chromaticity, CRI, Dominant Wavelength, Peak Wavelength
Measuring Range	0.01 to 100,000 lx
Illuminance Accuracy*¹	±2% @100 lx (Illuminant A)
Chromaticity Accuracy*¹	x: ±0.0015, y: ±0.001 @100 lx (Illuminant A)
Illuminance Repeatability*¹	1% (Illuminant A, >5 lx)
Chromaticity Repeatability*¹	0.0003 (Illuminant A, >5 lx)

The P-30 Spectroradiometer features a compact and lightweight design for easy handheld operation, offering excellent portability for use in various environments.
It enables millisecond-level intelligent measurement, providing rapid and efficient analysis of key parameters including Color Rendering Index (CRI), illuminance, color coordinates, and color temperature.
Equipped with a large 4-inch display and one-touch operation, the device combines a user-friendly interface with a sleek, portable design for clear and immediate data readability.
The accompanying software provides LED chromaticity grading functionality, supporting quality control and consistency in production.
Its detachable probe design allows easy access to confined testing environments such as integrating spheres and dark chambers.
Offers a selection of multiple spectral ranges to suit different application needs.
Features a modular design capable of supporting simultaneous connections with multiple probes for flexible measurement setups.
Powered by a built-in lithium-ion battery for cordless convenience and extended operation.
Comes standard with a USB interface and comprehensive PC application software for seamless data management and in-depth analysis.
