Ultraviolet-Vis Spectroradiometer

The spectroradiometer is used to analyze the spectral composition of a beam, which can be combined with various optical structures and absolute calibration to form a measuring instrument, that is, a spectrometer.

Contact

Characteristic
CS-4000 Specification
CS-4500 Specification
CS-6500 Specification

Ultraviolet-Vis Spectroradiometer Characteristic

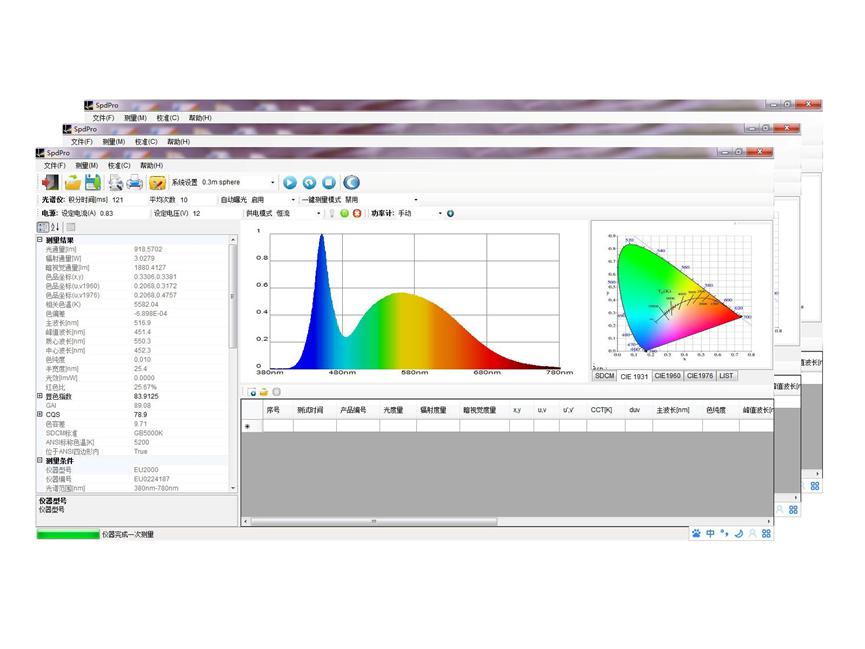

Spectrometers with the right software and other accessories provide solutions for a wide range of photometric tasks;
Applications range from quality control for LED or display manufacturers to the development of completely new lighting, LED, laser, automotive and display products.

Ultraviolet-Vis Spectroradiometer CS-4000 Specification

Model	CS-4000
Detector range	300-1100nm
Sensor	CCD Sensor
Pixel	3684/2048 Pixel
Wavelength range	330-1050nm
Signal-to-noise ratio	300：1 Full spectrum
A/D resolution	16-bit
Integration time	1.5msec-20sec
Refrigeration	—-
Stray light	<0.05%
Corrected linearity	>99.8%
Color temperature range	1500-35000K
Photometric range*	0.1~100000
Photometric accuracy	±2% (@ Standard A light source)
Photometric repeatability	±0.1% (@ Standard A light source)
Chrominance accuracy	±0.0003 (@ Standard A light source)
Chrominance repeatability	±0.0002 (@ Standard A light source)

Ultraviolet-Vis Spectroradiometer CS-4500 Specification

Model	CS-4500
Detector range	180-1100nm
Sensor	Thermoelectric refrigeration area array CCD (thin back-illuminated)
Pixel	2048*24 Pixel
Wavelength range	DUVN：200-1020nm；FUV：180-850nm；FUVN：180-1100；VNIR：350-1020nm；NIR1：790-1020nm
Signal-to-noise ratio	4700：1 Full spectrum
A/D resolution	16-bit
Integration time	1msec-65sec
Refrigeration	0°
Stray light	<0.05%
Corrected linearity	>99.8%
Color temperature range	1500-35000k
Photometric range*	0.005~100000
Photometric accuracy	±2% (@ Standard A light source)
Photometric repeatability	±0.1% (@ Standard A light source)
Chrominance accuracy	±0.0003 (@ Standard A light source)
Chrominance repeatability	±0.0002 (@ Standard A light source)

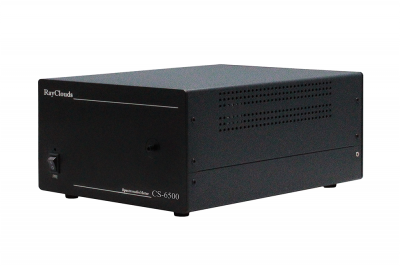

Ultraviolet-Vis Spectroradiometer CS-6500 Specification

Model	CS-6500
Detector range	180-1100nm
Sensor	Thermoelectric refrigeration area array CCD (thin back-illuminated)
Pixel	2048×24 Pixel
Wavelength range	FUVN：180-1100nm；DUVN：200-1020nm
Signal-to-noise ratio	37000:1 Full spectrum
A/D resolution	16-bit
Integration time	5msec-65sec
Refrigeration	-10°
Stray light	<0.05%
Corrected linearity	>99.8%
Color temperature range	1500-35000K
Photometric range*	0.001~100000cd/m²
Photometric accuracy	±2% (@ Standard A light source)
Photometric repeatability	±0.1% (@ Standard A light source)
Chrominance accuracy	±0.0003 (@ Standard A light source)
Chrominance repeatability	±0.0002 (@ Standard A light source)
